General
Video Resolutions:?? 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 1080p, 3840 x 2160p at 30 Hz, 4K
USB-A ports:?? 5 Gbps
Supported flash cards:?? SD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile
Supported flash cards:?? SD, SDHC and SDXC; up to 128 GB
Transfer speed:?? up to 40 Mbps
34-AWG cable gauge
Bus powered
USB-C PD Charging Port:?? 60 W (20 V at 5 A)
USB-A Total Output: 5 V, 2 A
Mylar and aluminum shielding
Withstanding voltage:?? 300 VDC
Insulation resistance:?? 10 M??©
Conductive resistance:?? 5 ??©
Connections
Input:
One USB-C 24-pin, male
Outputs:
One HDMI 19-pin, female
One 10/100/1000 Mbps RJ45, female
Two USB-A 4-pin, female
One SD memory slot
One USB-C 24-pin, Power Delivery, data sync, female
Physical
Housing:?? 116 x 45 x 15 mm
Cable Length:?? 13 cm (5.11 in.)
Weight:?? 83 g (2.92 oz.)
Housing:?? aluminum
Operating Environment
Operation Temperature:?? 0 – 45??°C (32 – 113??°F)
Storage Temperature:?? -10 – 70??°C (14 – 158??°F)
Humidity (noncondensing):?? 10 – 90%
System Requirements
Windows XP/Vista/7/8.1/10 or Linux or Mac 10.7.1 or above
Package Contents

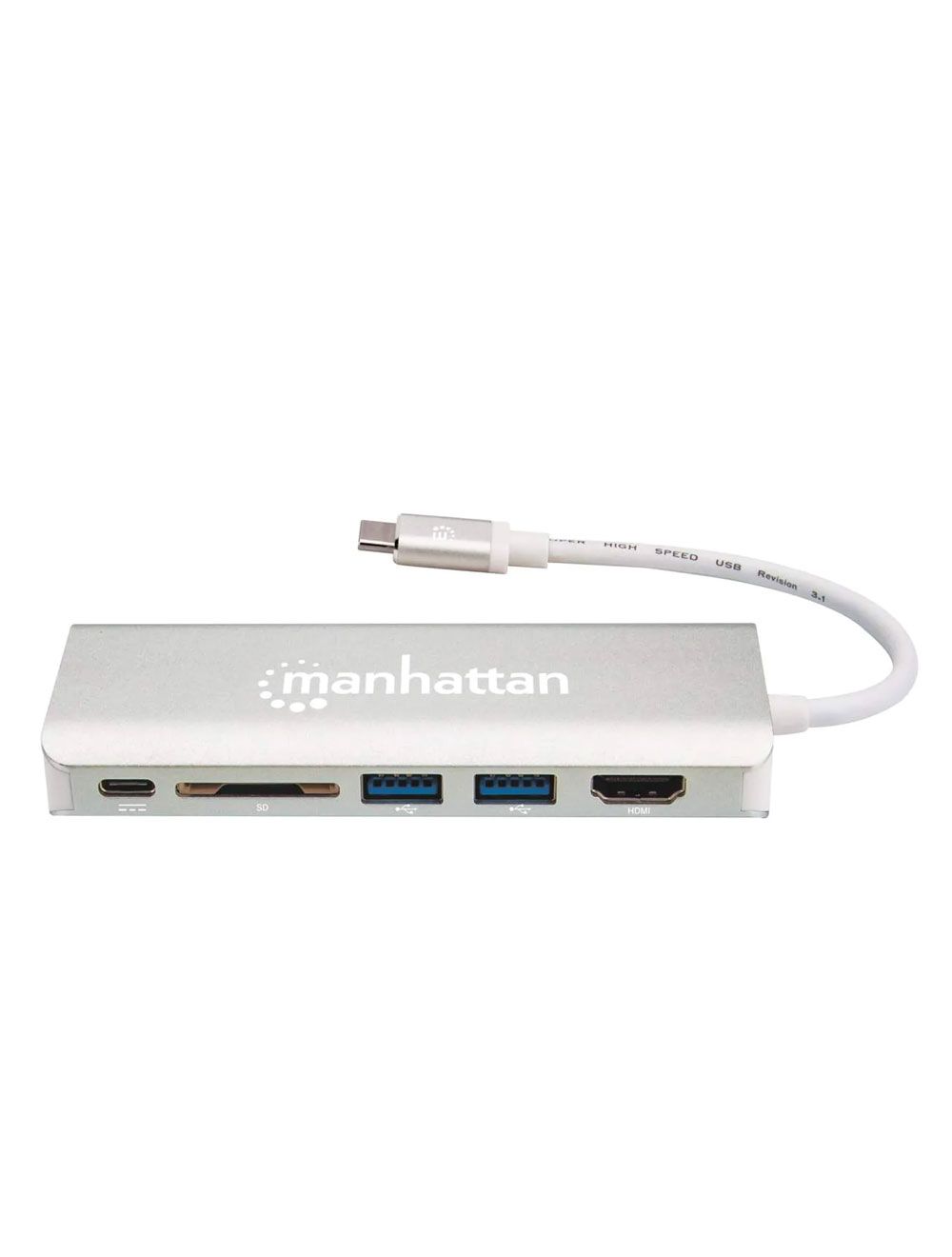

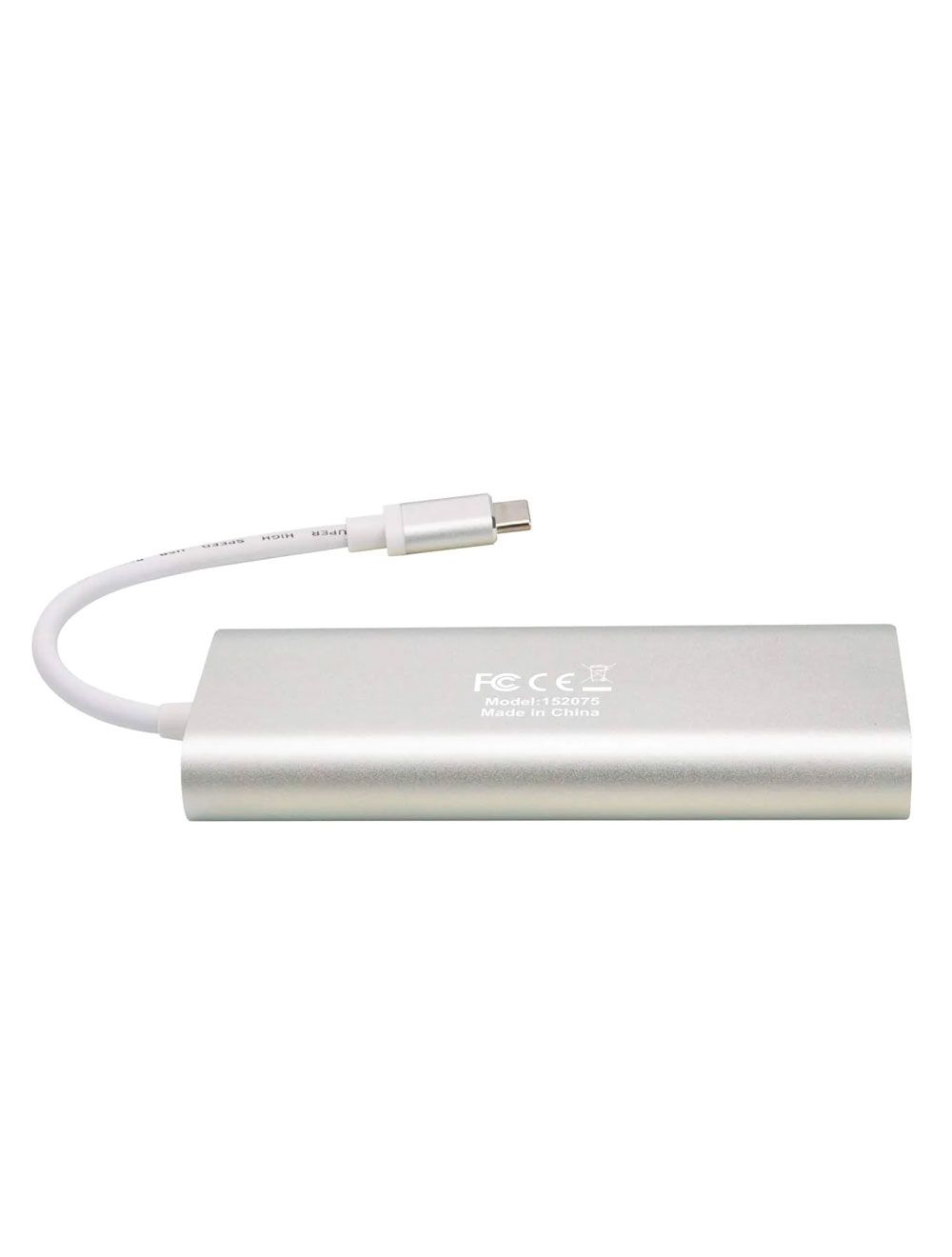

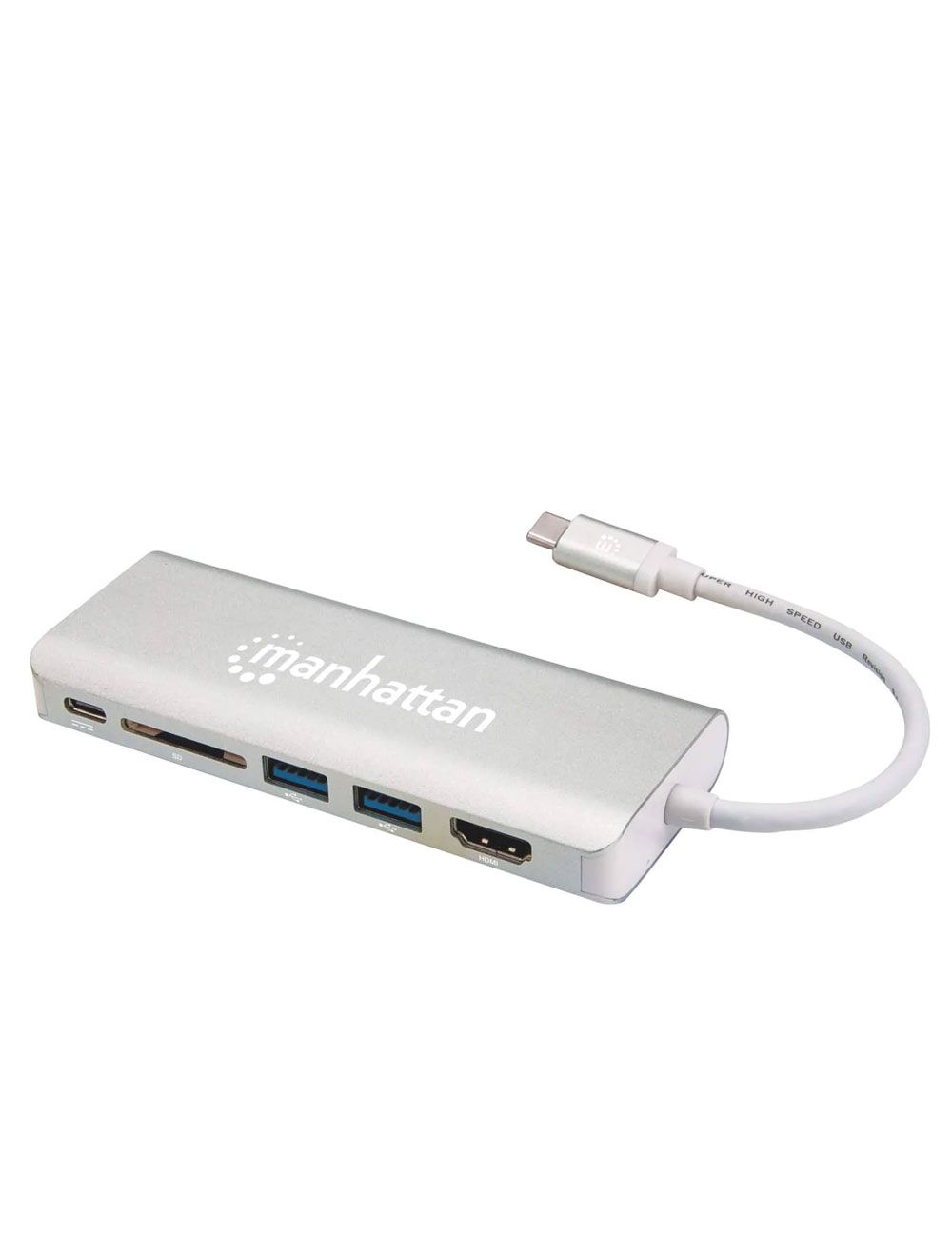

SuperSpeed USB-C Multiport Adapter
Quick Instruction Guide
