Standards and Certifications
USB 3.2 Gen 1
HDMI 1.4
HDCP 1.4
CE
FCC
RoHS2
WEEE
General
Video Resolutions:
640 x 480
800 x 600
1024 x 768
1920 x 1080 (1080p@60Hz)
1920 x 1200
3840 x 2160p at 30 Hz (4K@30Hz)
USB-A ports:?? 5 Gbps
Ethernet port:?? 10/100/1000 Mbps
Supported flash cards:?? SD / MicroSD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile; up to 128 GB
Transfer speed: up to 800 Mbps
34-AWG cable gauge
Bus-powered
USB-C PD Charging Port:?? 100 W (20 V at 5 A)
Mylar and aluminum shielding
Withstanding voltage:?? 300 VDC
Insulation resistance:?? 10 M??©
Conductive resistance:?? 5 ??©
Connections
Input:
One USB-C 24-pin, male
Outputs:
One HDMI 19-pin, female

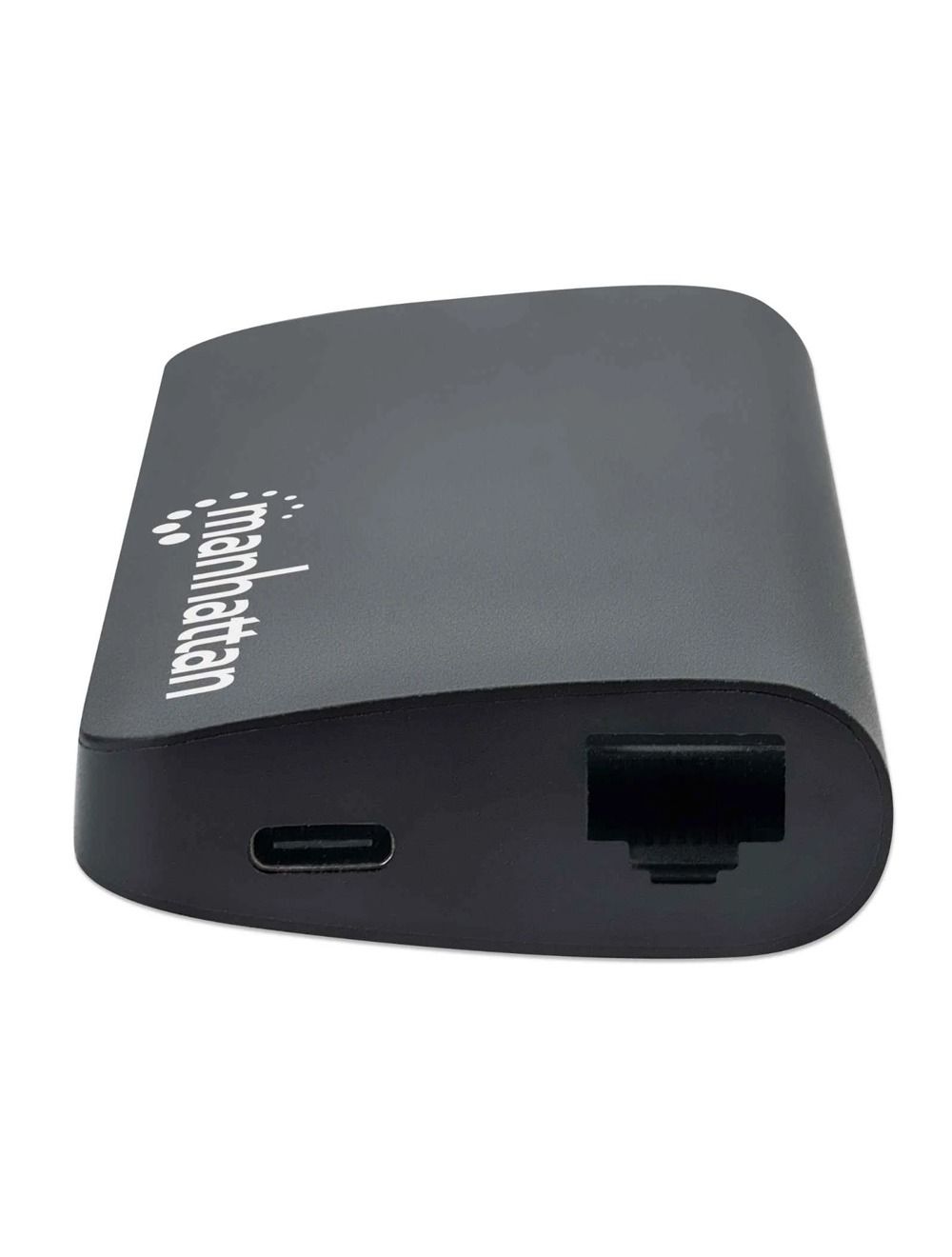

One 10/100/1000 Mbps RJ45, female

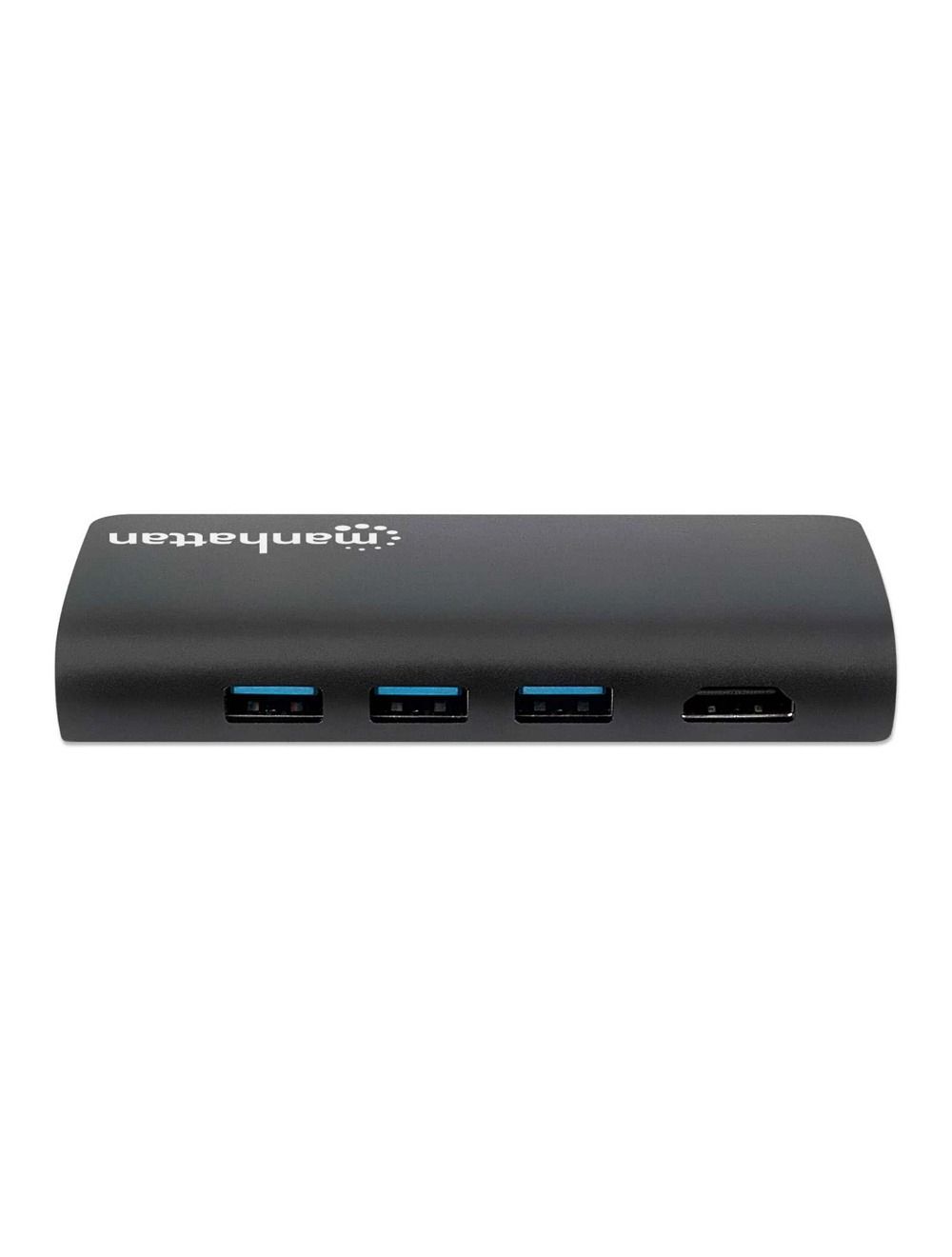

Three USB-A 4-pin, female
One SD memory slot
One MicroSD memory slot
One USB-C 24-pin, Power Delivery, female
Physical
Dimensions:?? 110 x 45 x 18 mm (4.33 x 1.77 x 0.71 in.)
Cable Length:?? 30 cm (11.8 in.)
Weight:?? 80 g (2.82 oz.)
Housing:?? aluminum
Operating Environment
Operation Temperature:?? 0 – 45??°C (32 – 113??°F)
Storage Temperature:?? -10 – 70??°C (14 – 158??°F)
Humidity (noncondensing):?? 10 – 90%
System Requirements
DP Alt Mode supported devices
Windows XP/Vista/7/8.1/10
Linux
Mac OS 10.7.1 or above
Package Contents

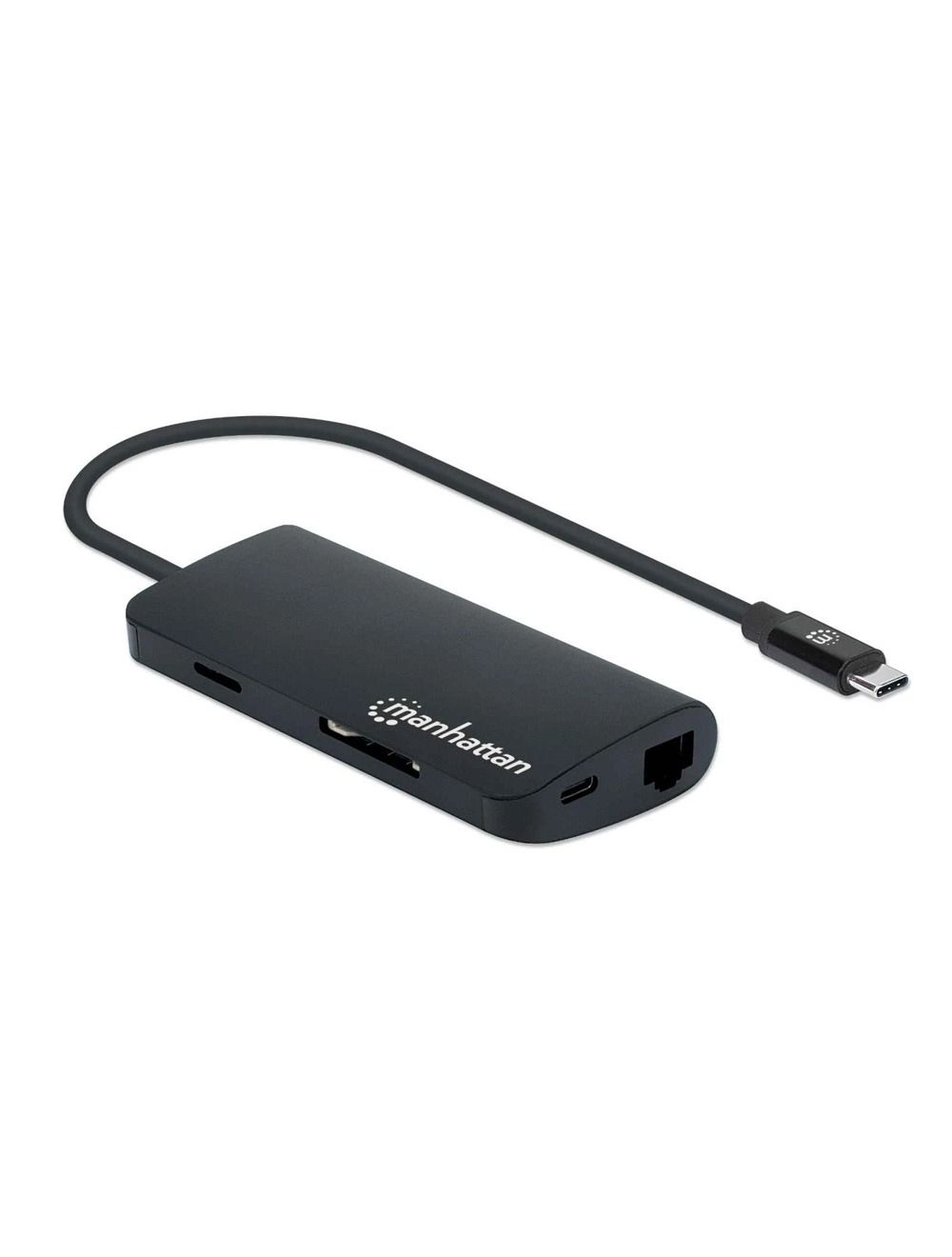

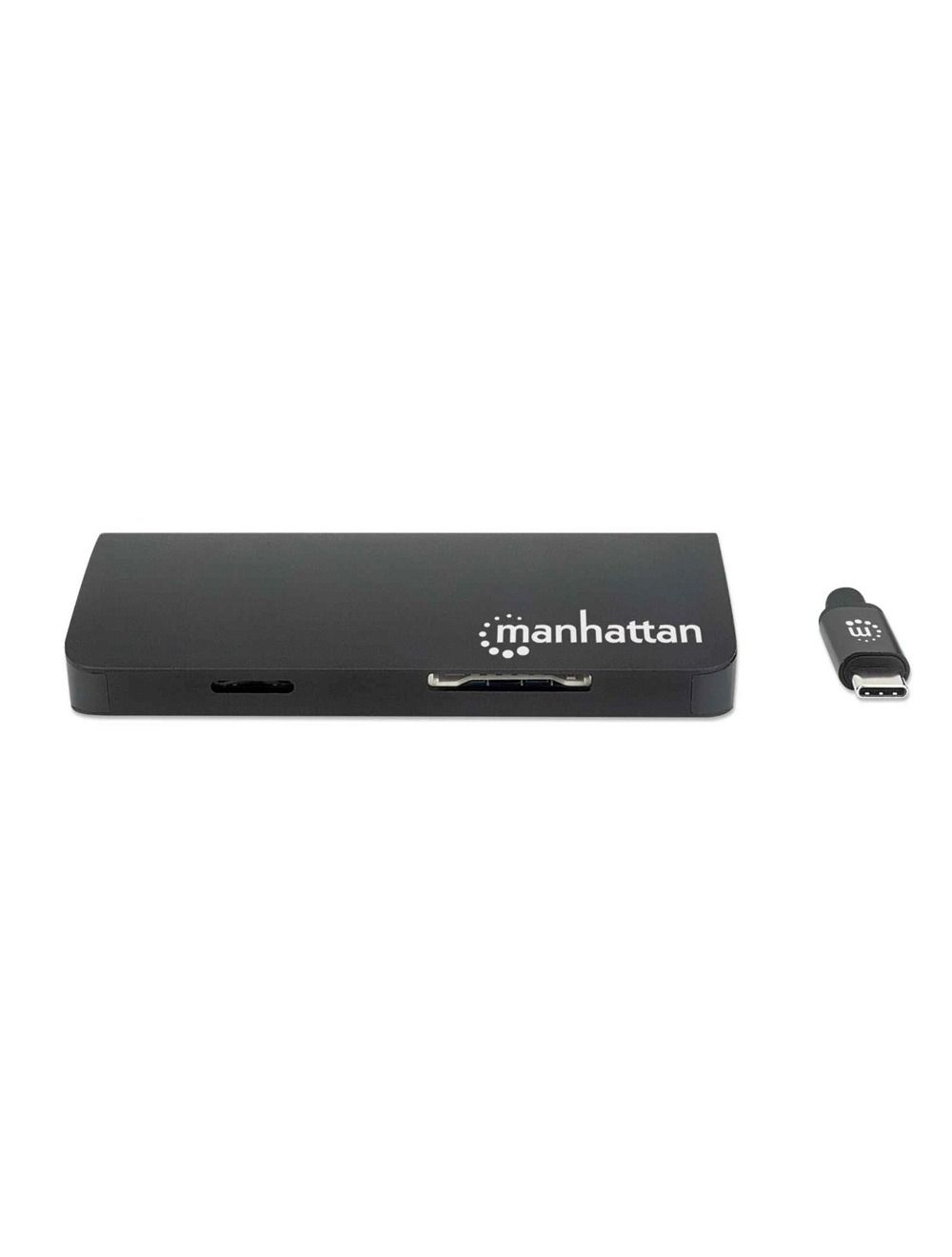

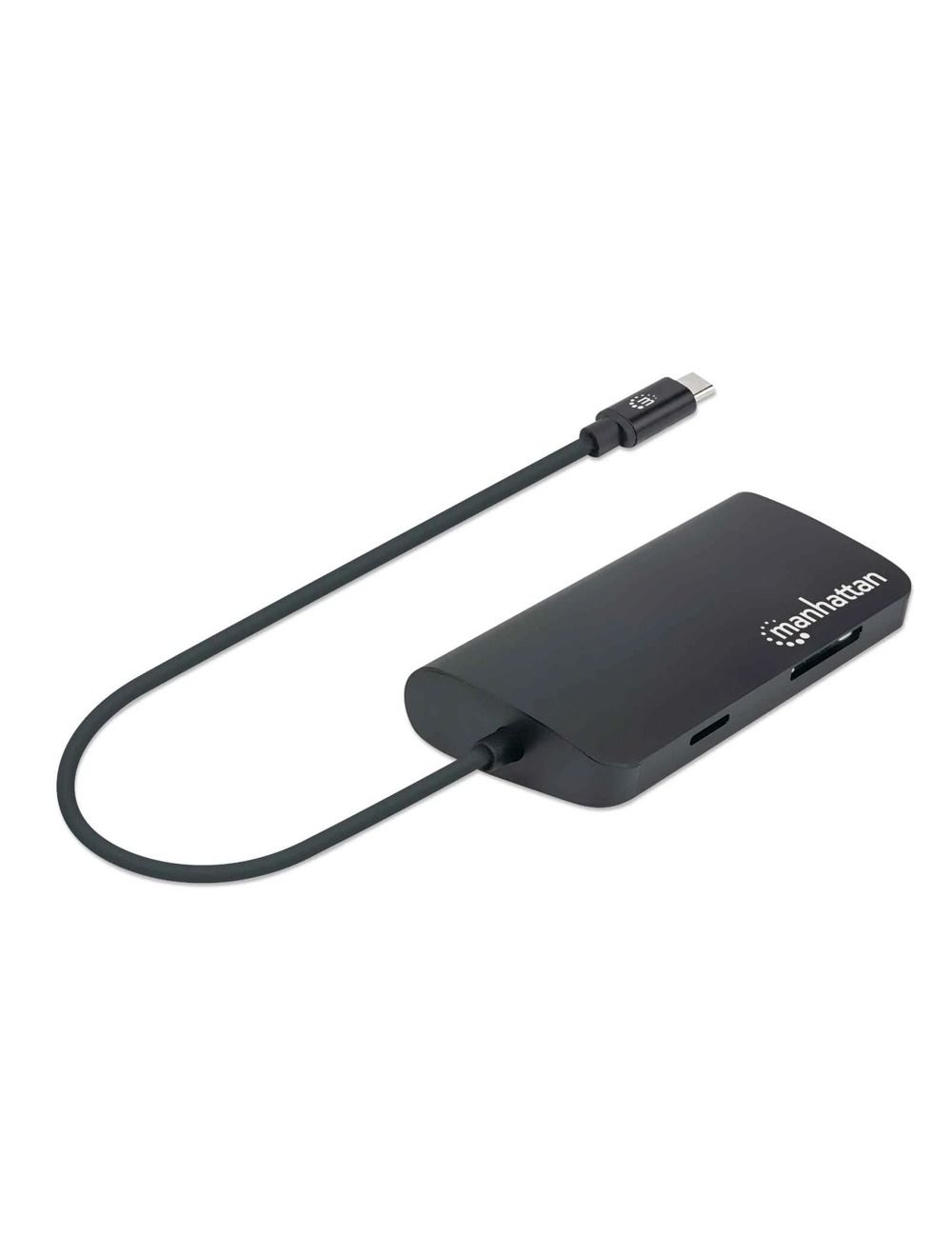

SuperSpeed USB-C Multiport Adapter
Quick Instruction Guide
